CS 40 - Computer Graphics

Portfolio

Shingo M.

Lab 1: Image Manipulation and Mandelbrot / Julia sets

Introduction to computer graphics, input / output of ppm files using C language. One part involved of taking an image with a blue background and replacing the background with another image. The other part consisted of drawing a Mandelbrot and Julia set, coloring each pixel according to their behaviors.

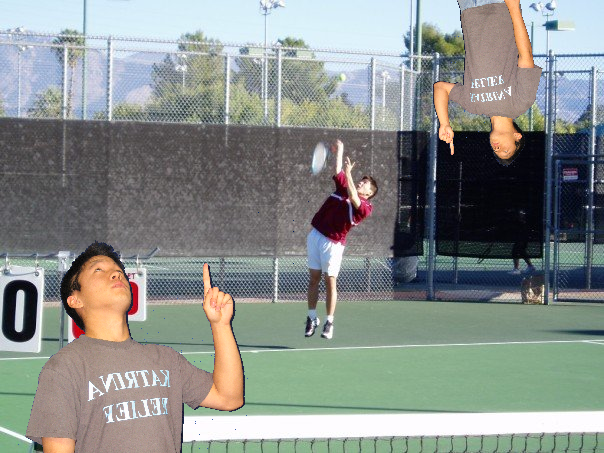

Image background replaced

Example of a Julia set

Lab 2: Primitive Types

Implementation of image, point, line, circle and ellipse primitive types.
Image: Holds pixel value for each pixel, defined as a two dimensional array
Point: holds its coordinate values
Line: defined by its endpoints, drawn using Bresenham's algorithm
Circle: defined by center and radius, traces one octant then extrapolates
Ellipse: defined by center, major axis and minor axis, drawn like circle, but in two parts

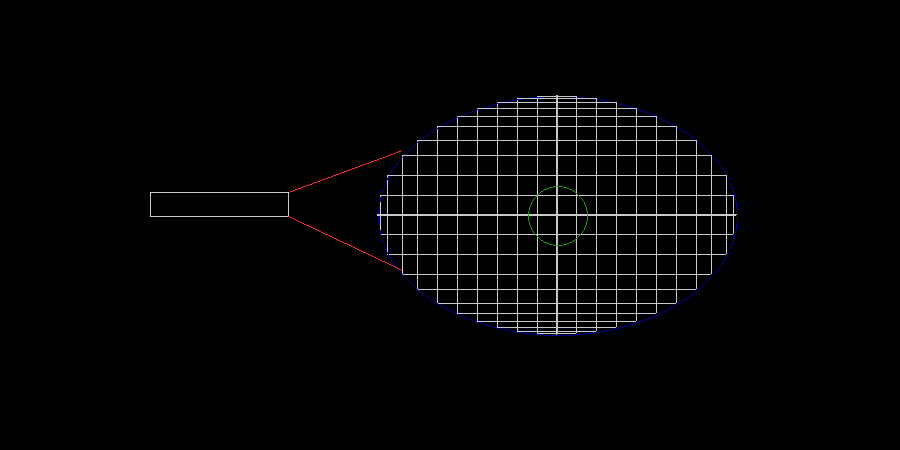

A tennis racket with a tennis ball, drawn with ellipse, lines, and a circle

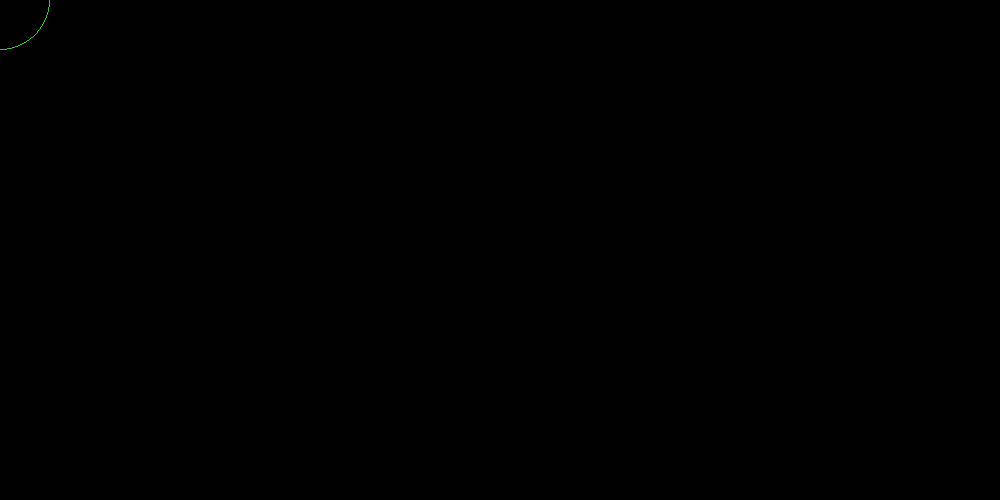

A bouncing ball, click on the image to animate

Lab 3: Scanfill

Implementation of polygon filling algorithm

Filling a concave polygon

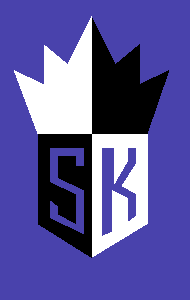

Filling a Sacramento Kings logo, image consists of 6 filled polygons

Lab 4: Matrix Transformation

2-D transformation of the primitive types using matrices
Introduction to view transformation matrices which controls what part of the scene is actually "seen"

A star is getting translated, scaled and rotated at each step. It is actually rotating around the origin, but the view transformation matrix (VTM) is also oriented around the origin, therefore we see it in the middle.

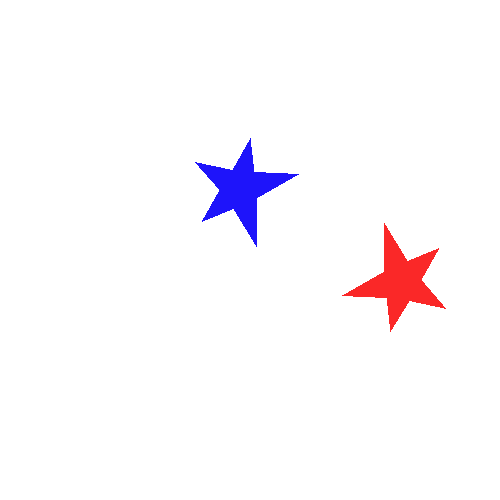

Two stars are rotating about the origin, the viewwindow shifts past them. Click on the image to animate

Lab 5: Modules

Creation of modules, which allow us to reuse set of primitive images and other modules
Keep track of primitive types and matrix transformations that define a "module" in a heretical tree

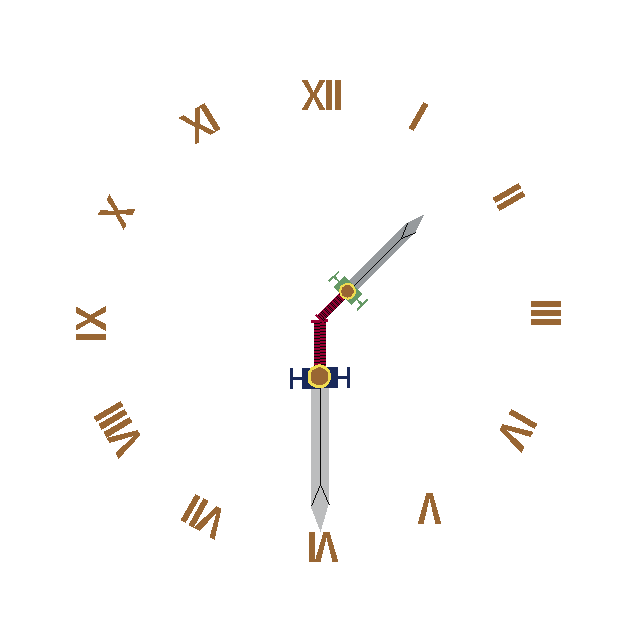

Clock made of two sword modules, click to animate

Lab 6: 3D Images

Creation of modules, which allow us to reuse set of primitive images and other modules
Keep track of primitive types and matrix transformations that define a "module" in a heretical tree

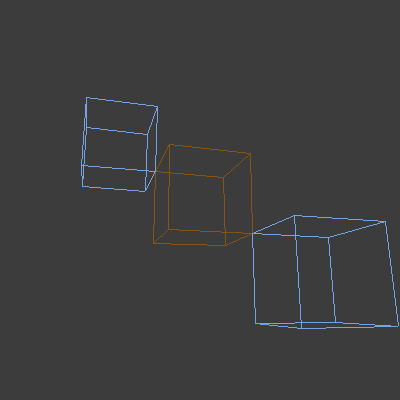

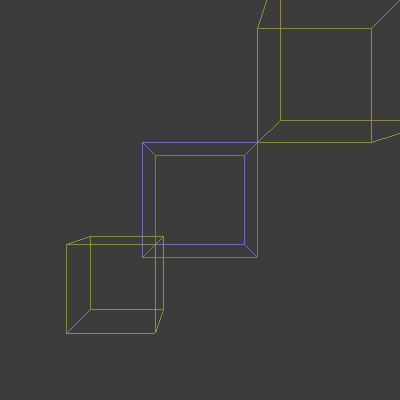

3D rendering of 3 cubes. Animation views the image from different positions. Click on the image to animate.

Lab 7: 3D Modules

Expand modules to handle 3D images and 3D matrix transformations

3D wireframe rendering of a Tennessee Titans logo. Created using submodules such as "star", "T", and "flame" Click on the image to animate

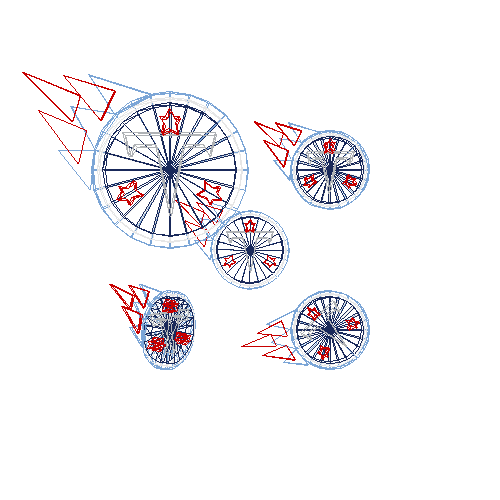

By applying matrix transformations, can produce many of them

Lab 8: Z Buffer

One of the difficulties in rendering 3D graphics is hidden surface removal. We need a way to figure out what parts of the images are actually visible from the viewer. So we implement a Z-buffer that is the same size as the image, and keep track of the "nearest" item that was drawn into the pixel.

They all render the same image, a 3D Tennessee Titans logo, from different angles. We can only see the side that is facing the viewer.

Lab 9: Shading

Implementation of an ambient light and point light. Ambient light lights the entire scene equally, whereas a point light will most affect faces that are facing the light. We compute the light effect at each vertex of the polygon, then shade them accordingly by interpolating between the vertices, then between the edges.

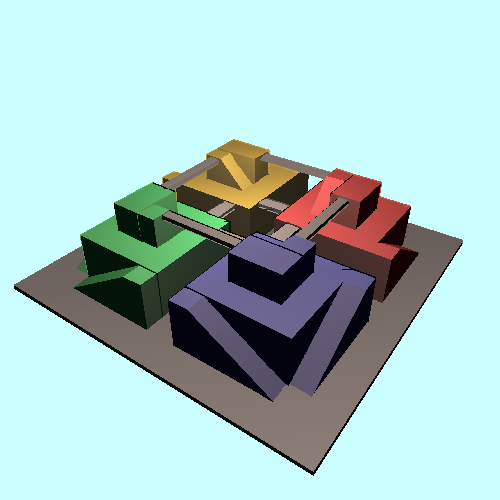

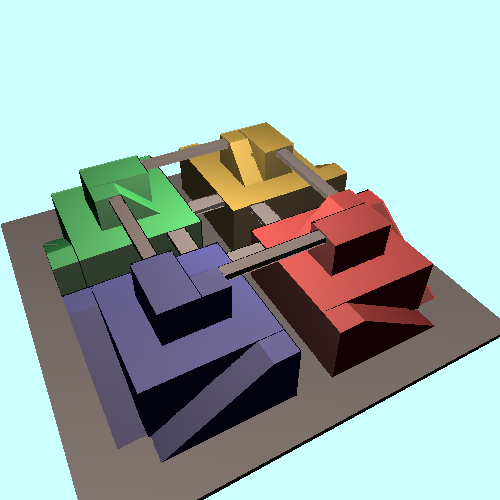

Rendering of the Block Fort from Mario Kart 64 (Nintendo). View from above There is a white point light up in the sky in the middle. Click on the bottom image to animate
